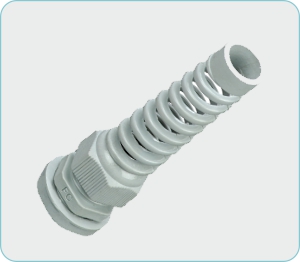

Cable Accessories Spiral Cable Glands in METRIC & PG Threads
Color: Grey/Black
| Sr. No. | Part No. | List Price | A | B | A/F | Packing |
|---|---|---|---|---|---|---|
| 1 | FC-SCG-7 | 28.50 | 47 | 7.50 | 15.00 | 25 Nos. |
| 2 | FC-SCG-9 | 33.50 | 56 | 8.25 | 18.75 | 25 Nos. |
| 3 | FC-SCG-11 | 36.00 | 67 | 8.25 | 21.50 | 25 Nos. |
| 4 | FC-SCG-13.5 | 44.00 | 74 | 9.00 | 23.75 | 25 Nos. |
| 5 | FFC-SCG-16 | 51.50 | 87 | 10.00 | 26.75 | 25 Nos. |
| 6 | FC-SCG-21 | 73.50 | 105 | 11.00 | 32.50 | 25 Nos. |
| 7 | FC-SCG-M12x1.5 | 30.00 | 47 | 7.50 | 15.00 | 25 Nos. |
| 8 | FC-SCG-M16x1.5 | 32.00 | 56 | 8.25 | 18.75 | 25 Nos. |
| 9 | FC-SCG-M20x1.5 | 45.00 | 74 | 9.00 | 23.75 | 25 Nos. |
| 10 | FC-SCG-M25x1.5 | 54.00 | 87 | 10.00 | 26.75 | 25 Nos. |
| 11 | FC-SCG-M32x1.5 | 76.00 | 105 | 11.00 | 32.50 | 25 Nos. |
- FC-SCG Cable glands have all features of standard PG Thread Cable Glands with an added cable support to prevent damage and kinks in the cable.
