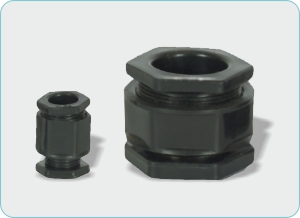

Cable Accessories Nylon Straight Cable Glands
Technical Specification:
Body: Polyamide 6
Sealing Washer : PVC
Temp: Static 20°C +80°C
Dynamic -10°c + 60°c
Dynamic -10°c + 60°c
Protection Class - Open
Color: Black only
Item Contents: Body, Cap, Nut, PVC Washer.
| Sr. No. | Part No. | List Price | C | D | Lock Nut E | øF | Packing | |
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | |||||||
| 1 | FCST-16 | 12.50 | 35.0 | 33.0 | 11 | 5 | 14.0 | 25 Nos |
| 2 | FCST-20 | 13.50 | 37.0 | 35.0 | 11 | 5 | 17.5 | 25 Nos |
| 3 | FCST-25 | 17.00 | 37.5 | 35.0 | 11 | 5 | 24.0 | 25 Nos |
| 4 | FCST-32 | 26.50 | 40.0 | 37.5 | 11 | 5 | 30.0 | 25 Nos |
