Control Panel Accessories MCB Blanker Suitable for Blank Cut out in Control Panel and DB Box
MCB Blanker Suitable for Blank Cut out in Control Panel and DB Box.
MCB Blanker Suitable for Blank Cut out in Control Panel and DB Box.
Product Type:Single Module, 4 Module, 5 Module, 12 Module.
Material: ABS
Colour: Grey RAL - 7035

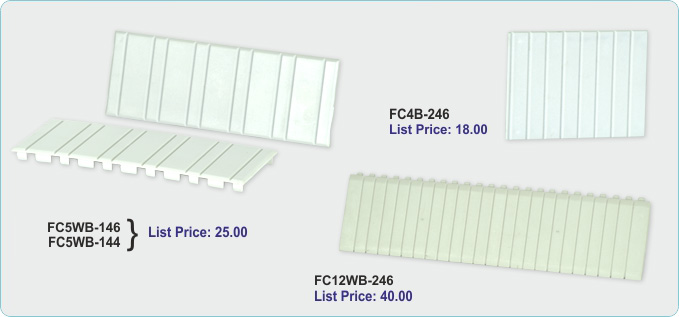

| Product Code. | A | B | Sheet Size C |
Cut out Size |
|---|---|---|---|---|
| FC5WB-146 | 146mm | 45.5mm | 1.5 to 2mm | 46x142mm |
| FC5WB-144 | 146mm | 43.5mm | 1.5 to 2mm | 44x142mm |
| FC4B-246 | 73mm | 45.5mm | 1.5 to 2mm | 46x68mm |
| FC12WB-246 | 216mm | 45.5mm | 1.5 to 2mm | 46x210mm |
Product Type: Single Module
Material: ABS
Colour: Grey RAL - 7035

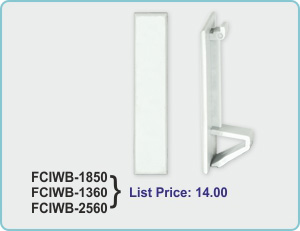

| Product Code. | A | B | C | Sheet Size | Cut out Size |
|---|---|---|---|---|---|
| FCIWB-1850 | 54mm | 18mm | 50mm | 1.5 to 2mm | 50x17mm |
| FCIWB-1360 | 65mm | 13mm | 60mm | 1.5 to 2mm | 60x12mm |
| FCIWB-2560 | 65mm | 25mm | 60mm | 1.5 to 2mm | 60x24mm |
