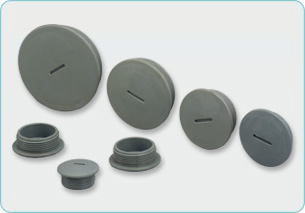

Control Panel Accessories Blanking Plug in Metric & PG Threads
Material: Polyamide.
Available in Black & Grey Color
Protection: IP-54
Sr.No. Part No. List price per 100 pcs. A B ØC
1. FC-BP-7 600.00 6.0 8.0 12.4
2. FC-BP-9 750.00 6.0 9.0 15.2
3. FC-BP-11 710.00 9.5 9.0 18.3
4. FC-BP-13.5 792.00 9.5 9.5 20.0
5. FC-BP-16 810.00 9.5 9.5 22.5
6. FC-BP-21 1050.00 11.0 11.0 28.5
7. FC-BP-29 1900.00 12.0 12.0 36.7
8. FC-BP-36 2400.00 15.0 15.0 47.0
9. FC-BP-42 3275.00 16.0 16.0 50.0
10. FC-BP-48 4050.00 12.0 16.0 60.0
11. FCBP-M12x1.5 600.00 6.0 10.0 12.5
12. FCBP-M16x1.5 750.00 7.0 11.5 16.5
13. FCBP-M20x1.5 810.00 7.0 9.5 20.5
14. FCBP-M25x1.5 950.00 11.0 15.5 25.5
15. FCBP-M32x1.5 2100.00 11.0 16.0 32.5
16. FCBP-M40x1.5 2500.00 13.0 18.0 41.0
17. FCBP-M50x1.5 3000.00 13.0 18.5 51.0
18. FCBP-M63x1.5 4100.00 15.0 19.0 65.0

LOCK NUTS Metric & PG Threads
Material: Polyamide 6
Available in Black & Grey Color
Compatible with FC Cable Glands & Blanking Plugs
Sr.No. Threading Type List price per 100 pcs part No. A B
1. PG-7 345.00 FCLN-7 5.2 17.8
2. PG-9 425.00 FCLN-9 5.2 24.5
3. PG-11 430.00 FCLN-11 5.2 26.5
4. PG-13.5 550.00 FCLN-13.5 6.1 29.5
5. PG-16 600.00 FCLN-16 6.2 33.5
6. PG-21 800.00 FCLN-21 7.0 39.0
7. PG-29 1160.00 FCLN-29 7.0 50.5
8. PG-36 1800.00 FCLN-36 8.0 67.0
9. PG-42 2000.00 FCLN-42 8.0 66.0
10. PG-48 2700.00 FCLN-48 9.5 78.66
11. PG-63 3000.00 FCLN-63 9.5 81.60
Sr.No. Threading Type List price per 100 pcs part No. A B
1. M12X1.5 350.00 FCLN-M12X1.5 5.0 17.9
2. M16X1.5 415.00 FCLN-M16X1.5 5.1 24.3
3. M20X1.5 550.00 FCLN-M20X1.5 6.1 30.0
4. M25X1.5 590.00 FCLN-M25X1.5 6.2 33.6
5. M32X1.5 800.00 FCLN-M32X1.5 7.3 39.9
6. M40X1.5 1350.00 FCLN-M40X1.5 8.0 48.0
7. M50X1.5 2200.00 FCLN-M50X1.5 8.0 58.0
8. M63X1.5 3000.00 FCLN-M63X1.5 9.5 78.0
Rubber Grommets and closures
Material: Rubber EPDM
Material: Plastic PVC HRC 60-65(Soft.)
Suitable for 2mm, 2.5 mm & 3 mm Shreet.
CAT No List price per 100 pcs Sheet Hole (Inch) Diameter (mm)
FC-GB-01 300.00 3/8" 9.5
FC-GB-02 380.00 1/2" 12.5
FC-GB-03 400.00 5/8" 15.5
FC-GB-04 460.00 3/4" 19.0
FC-GB-05 485.00 7/8" 22.0
FC-GB-06 450.00 1" 25.0
FC-GB-07 730.00 11/4" 32
FC-GB-08 900.00 1 1/2" 37.5
FC-GB-09 1200.00 1 3/4" 44.0
FC-GB-10 1300.00 2" 50.0
FC-GB-11 1450.00 2 1/4" 56.25
FC-GB-12 2400.00 2 1/2" 62.5
