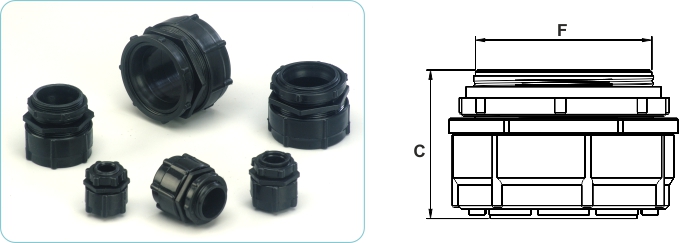

Conduits And Conduit Accessories Flexible Conduit Pipe Gland Suitable for Flexible Conduit Pipes
CP glands are available in mm threads.
Specially designed teeth for effective gripping and sealing of conduit pipes.
Conduit Pipe glands are ideally suited for use where a number of wires are to be passed through a single panel port or machine part.
Available Black and Grey Colors.
Material: ABS.
| Sr.No. | Part No. | List Price | Pipe Size | Pipe Size | C | øF | Packing | |
|---|---|---|---|---|---|---|---|---|
| ID | OD | |||||||
| 1. | FCCP-16 | 12.00 | 12 | 11 | 16 | 30 | 15.5 | 25 Nos |
| 2. | FCCP-20 | 15.50 | 16 | 15 | 20 | 31 | 18.5 | 25 Nos |
| 3. | FCCP-25 | 21.00 | 20 | 19 | 25 | 37 | 23.5 | 25 Nos |
| 4. | FCCP-32 | 23.00 | 25 | 25 | 32 | 40 | 30.5 | 25 Nos |
| 5. | FCCP-38 | 25.00 | 30 | 28 | 38 | 40 | 30.5 | 25 Nos |
| 4. | FCCP-40 | 25.00 | 32 | 32 | 40 | 40 | 38.0 | 25 Nos |
| 7. | FCCP-50 | 31.10 | 40 | 40 | 50 | 41 | 49.0 | 25 Nos |
